ESE SEMICONDUCTOR PRINTING SOLUTION

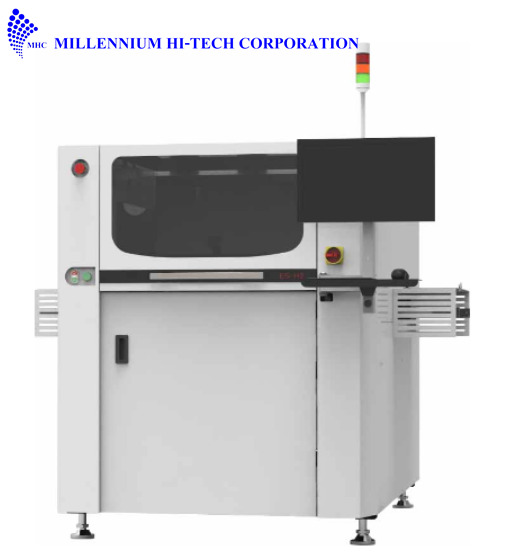

• Compact SMT High speed printer • Ultimate speed and Smart performance printer • Back-To-Back (BTB) configurable • Linear motor applied • Integrated shuttle conveyor for BTB PCB Size: 50 mm x 50 mm ~ 350 mm x 250 mm [* Optional 380 mm x 280 mm] PCB Thickness: 0.3 mm ~ 6 mm Stencil Mask Size: 550 mm, 584 mm(23"), 650 mm Core Cycle Time: 5 sec / under optimized condition Alignment Accuracy: ±10 ㎛ @ 6 sigma Printing Repeatability: ±20 ㎛ @ 6 sigma , Cmk ≥2.0 by 3rd party [* ±18 ㎛ @ 6 sigma , Cmk ≥2.0 by ESE]
• General SMT printing High speed printer • Super core cycle time and High throughput Printer • Back-To-Back (BTB) configurable • Linear motor applied PCB Size: 50 mm x 50 mm - 550 mm x 510 mm PCB Thickness: 0.3 mm to 6 mm Stencil Mark Size: 550 mm , 584 mm (23"), 650 mm , 736 mm (29") Core Cycle Time: 6 sec / under optimized condition Alignment Accuracy: ±10 ㎛ @ 6 sigma Printing Repeatability: ±20 ㎛ @ 6 sigma , Cmk ≥2.0 by 3rd party [* ±18 ㎛ @ 6 sigma , Cmk ≥2.0 by ESE]
> ESE Semiconductor Printing Solution
For more information, please contact us by details below.
55/39 Soi Prasertmanukit 42, Nawamin, Buengkum, Bangkok 10230 Thailand Tel.:+66 2508 2051-2 , Fax :+66 2508 2053
Email: surasit@millennium-hitech.com
