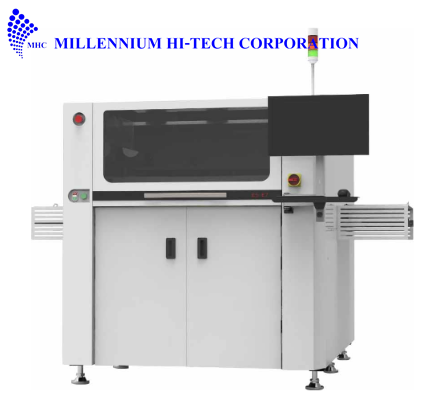

ESE SEMICONDUCTOR PRINTING SOLUTION
• Much flexible capacity up to 700 mm • 12 over enhanced standard program integrated • Much solid frame & Table • 3 stages conveyor system • Auto stencil loading & Positioning
PCB Size: 70 mm x 70 mm ~ 700 mm x 610 mm PCB Thickness: 0.3 mm ~ 6 mm Stencil Mask Size: 650 mm, 736 mm, 800 mm, 850 mm, 900 mm Cycle Time: 12 sec / under optimized condition Alignment Accuracy: ±12.5 ㎛ @ 6 sigma Printing Repeatability: ±25 ㎛ @ 6 sigma , Cpk ≥2.0
• Qualified professional large board up to 850 mm • 12 over enhanced standard program integrated • Much solid frame & Table • 3 stages conveyor system • Auto stencil loading & Positioning
PCB Size: 70 mm x 70 mm ~ 850 mm x 610 mm PCB Thickness: 0.3 mm ~ 6 mm Stencil Mark Size: 736 mm(29"), 800 mm, 850 mm, 980 mm, 1050 mm x 850 mm Cycle Time: 17 sec / under optimized condition Alignment Accuracy: ±12.5 ㎛ @ 6 sigma Printing Repeatability: ±25 ㎛ @ 6 sigma , Cmk ≥2.0
> ESE Semiconductor Printing Solution
