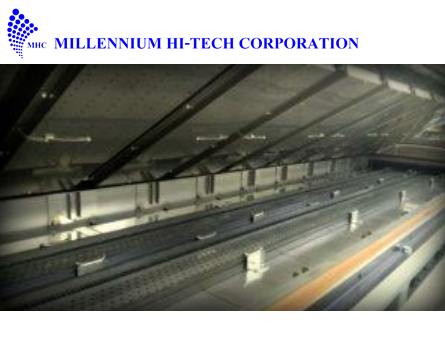

Built on the industry-leading Pyramax platform, TrueFlat is a unique reflow oven configuration to stop substrate warpage.Bottom chamber of a Pyramax TrueFlat convection reflow oven. Designed for substrate thicknesses of 0.15 to 0.30mm, TrueFlat technology ends die tilt. The result is consistent and repeatable flatness, and superior thermal uniformity due to the Pyramax's closed-loop convection heating.

The new Pyramax with TrueFlat technology does not impact reflow oven footprint, making it easy to transition from existing reflow processes. Easy to maintain with no vacuum pump, the system offers simple operation and full integration with BTU's proprietary WINCON™ Windows-based software including factory host/MES interface for Industry 4.0 compliance.
