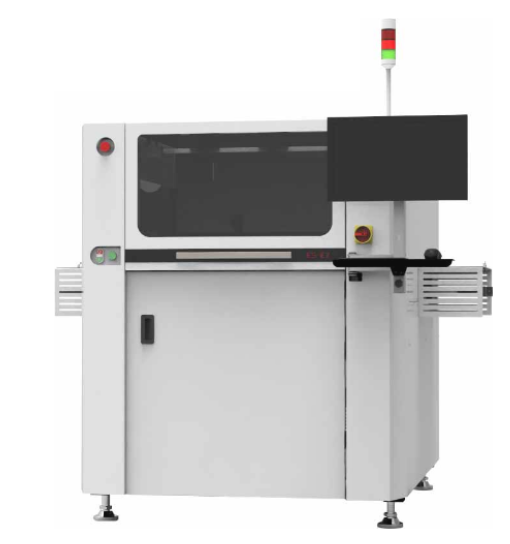

ES-E2

• Economic & Smart Printer
• 12 over enhanced standard program integrated
• Much solid frame & Table
• 3 stages conveyor system
• Auto stencil loading & Positioning

PCB Size: 50 mm x 50 mm ~550 mm x 510 mm
PCB Thickness: 0.3 mm ~ 6 mm
Stencil Mask Size: 550 mm, 584 mm, 650 mm, 736 mm
Cycle Time: 10 sec / under optimized condition
Alignment Accuracy: ±12.5 ㎛ @ 6 sigma
Printing Repeatability: ±25 ㎛ @ 6 sigma , Cpk ≥2.0

ES-E2+

• High precise & Wet printing repeatability Printer
• 12 over enhanced standard program integrated
• Much solid frame & Table
• 3 stages conveyor system
• Auto stencil loading & Positioning

PCB Size: 50 mm x 50 mm ~550 mm x 510 mm
PCB Thickness: 0.3 mm ~ 6 mm
Stencil Mark Size: 650 mm, 736 mm, 800 mm, 850 mm, 900 mm
Cycle Time: 9 sec / under optimized condition
Alignment Accuracy: ±10 ㎛ @ 6 sigma
Printing Repeatability: ±20 ㎛ @ 6 sigma , Cpk ≥2.0
