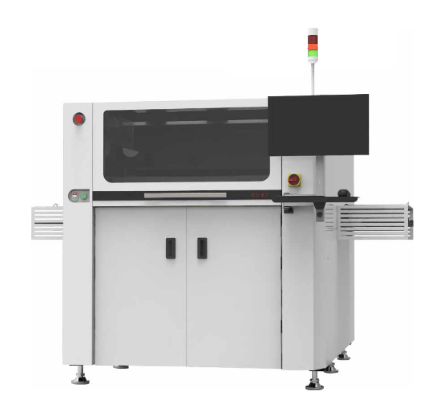

ES-E7

• Much flexible capacity up to 700 mm
• 12 over enhanced standard program integrated
• Much solid frame & Table
• 3 stages conveyor system
• Auto stencil loading & Positioning

PCB Size: 70 mm x 70 mm ~ 700 mm x 610 mm
PCB Thickness: 0.3 mm ~ 6 mm
Stencil Mask Size: 650 mm, 736 mm, 800 mm, 850 mm, 900 mm
Cycle Time: 12 sec / under optimized condition
Alignment Accuracy: ±12.5 ㎛ @ 6 sigma
Printing Repeatability: ±25 ㎛ @ 6 sigma , Cpk ≥2.0

ES-E8

• Qualified professional large board up to 850 mm
• 12 over enhanced standard program integrated
• Much solid frame & Table
• 3 stages conveyor system
• Auto stencil loading & Positioning

PCB Size: 70 mm x 70 mm ~ 850 mm x 610 mm
PCB Thickness: 0.3 mm ~ 6 mm
Stencil Mark Size: 736 mm(29"), 800 mm, 850 mm, 980 mm, 1050 mm x 850 mm
Cycle Time: 17 sec / under optimized condition
Alignment Accuracy: ±12.5 ㎛ @ 6 sigma
Printing Repeatability: ±25 ㎛ @ 6 sigma , Cmk ≥2.0
